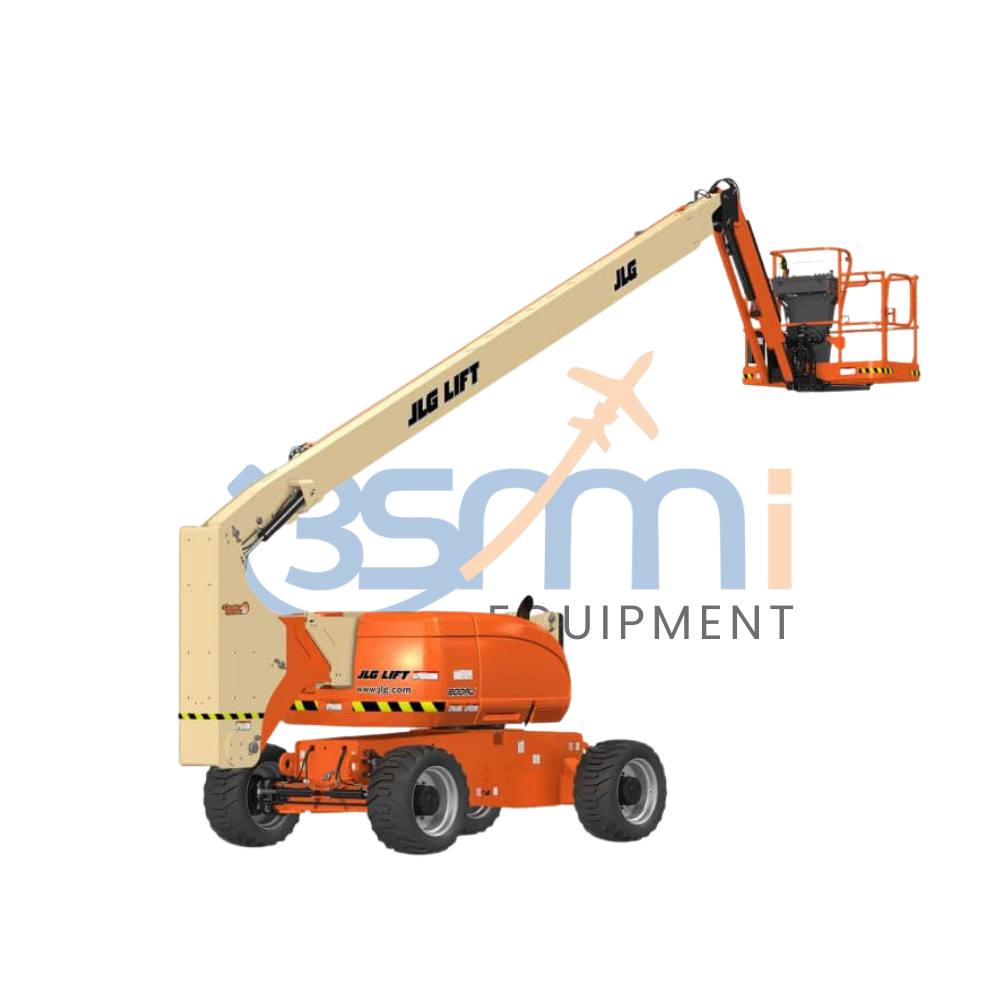

Articulated Boom Lift

Description

At 3SAM Equipment, we offer a wide range of articulated boom lift rentals, for versatile access in construction, maintenance, infrastructure, and industrial projects, with flexible rates, expert training, and nationwide support to ensure safe, efficient operations. Our fleet provides up-and-over capabilities for navigating obstacles, ideal for tasks such as facade installations, electrical work, or inspections in confined spaces.

Key Specifications:
Load Capacity (SWL): 500 lb (227 kg), unrestricted, supporting operators and tools for various elevated tasks.
Jib Length: 4 ft (1.22 m) with 139° vertical rotation for precise positioning and enhanced reach.
Working Height: Up to 40 ft 7 in (12.54 m), with 34 ft 7 in (10.54 m) platform height and 22 ft 3 in (6.78 m) horizontal reach.
Power Type: Diesel (24.8 hp Kubota D1105 engine, Stage IIIA/V compliant), with options for gas/LPG dual fuel or electric variants for low-emission environments.
Weight of Machine: 11,010 lb (4,994 kg), designed for stability with a compact footprint (width: 6 ft 1 in / 1.85 m).
Applications: Suited for indoor/outdoor use in high-reach scenarios like building maintenance, tree trimming, or signage installation, with 45% gradeability, 3.0 mph (4.8 km/h) drive speed, and 355° turntable rotation for maneuverability in tight areas.

Integrated Safety Features
CE-certified with tilt sensor activation (2.5°-4.5°/4.5°), alarm package (descent, travel, tilt), drive enable system, platform load sense, and emergency controls; includes 180° platform rotation, zero tail swing, and vibrations limited to 8 ft 2 in/s² (2.5 m/s²) for operator comfort and compliance with ANSI A92.20 and CSA B354.6 standards. We provide mandatory training and risk assessments to enhance safety.

Explore our inventory or request a quote today for customized rental solutions
